TOPDON TC002 iOS Thermal Imaging Camera

About The TC002

The TC002 thermal imaging camera for smartphones provides top-notch accuracy for temperature detection, insulation inspection, and circuit board inspection. With an ultra-high resolution of 256x192, the TC002 delivers clear and detailed thermal images. It offers a temperature detection range of ±3.6°F(2°C), with an accuracy of 0.1°C; and with its low power consumption of 0.35W, you can use it for extended periods of time without worrying about running out of battery. The high heat sensitivity of 40mk allows for precise temperature changes to be sensed.

TC002 Features

 Unlimited Accuracy & Clarity

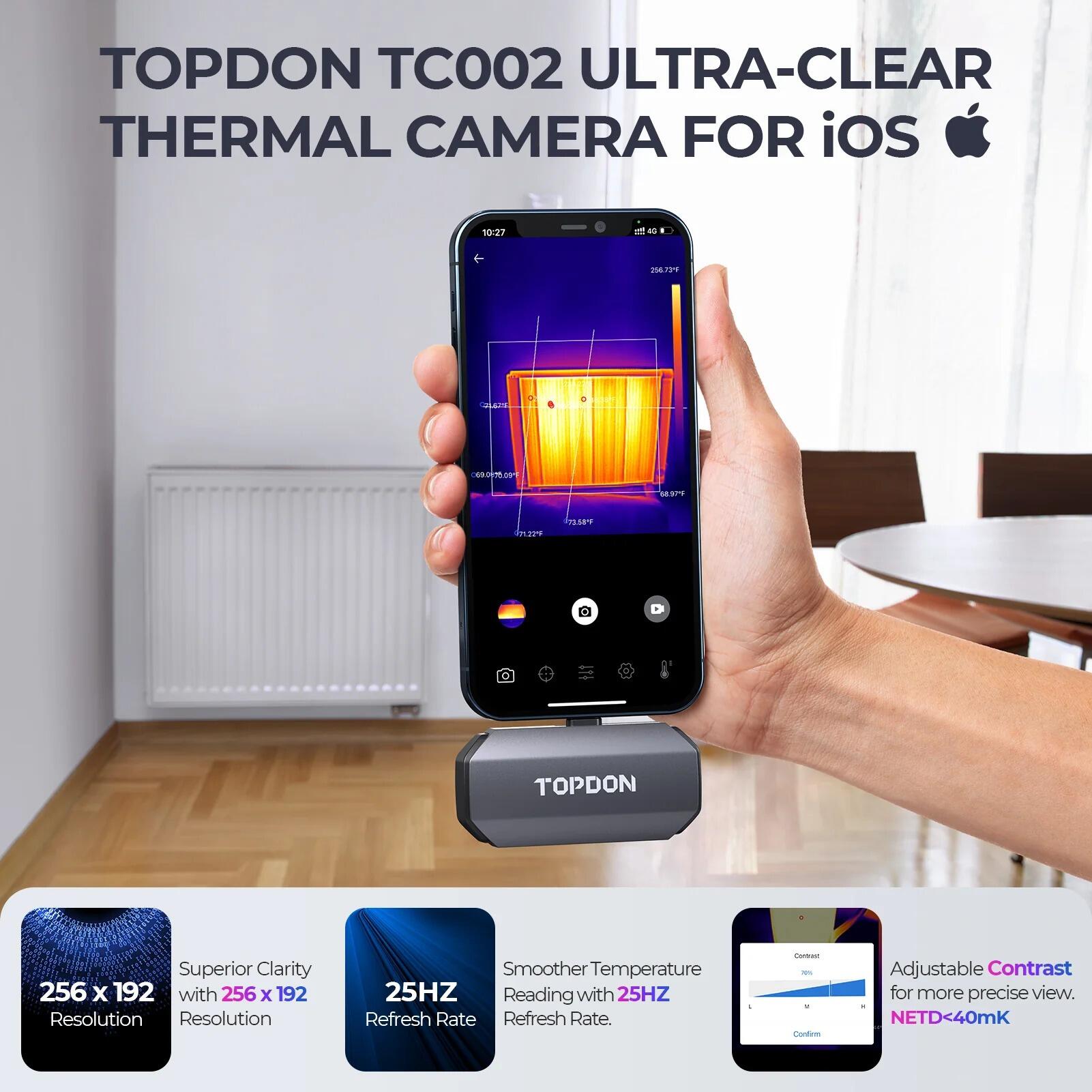

• The TC002 boasts a high-resolution of 256 x 192 pixels, providing clear and detailed thermal images of your target. Its high accuracy and clarity make it perfect for objects where surface temperature is difficult to distinguish.

Built For Mobility

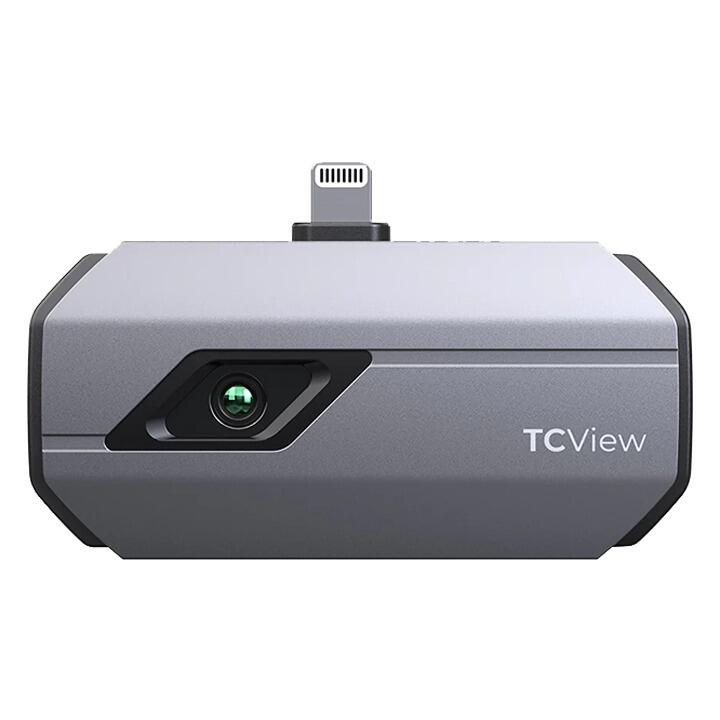

• The TC002 is compact and lightweight, measuring 2.8 inches by 1.65 inches by 0.55 inches, and weighing just 30 grams. Its portable design makes it easy to pair with iPhones and iPads, and the rugged aluminum case provides protection against drops, ensuring you can monitor temperature anywhere, anytime.

 Lower Consumption - Longer Battery Life

• The TC002 connects to your iPhone or iPad and is powered by the device; eliminating the need for a separate power source.
• Its low power consumption of 0.35W ensures longer battery life, with 4-7 hours of usage on devices with a 3000-5000mAh battery.

Improved Temperature Range & Accuracy

• The TC002 boasts a wide temperature range of -4°F to 1022°F (-20°C to 550°C), making it suitable for temperature readings on a variety of objects. It also boasts improved accuracy, with a variance of ±3.6°F (2°C) or 2% of the maximum temperature, and a temperature measurement accuracy of 0.1°F (0.1°C).

 Extensive Applications

• The TC002's precise temperature measurement capabilities make it an ideal tool for a variety of industries and applications. It allows for safe temperature readings from a distance; making it suitable for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to monitor crops and livestock.

Thermal Imaging With More Details

• Three Temperature-Reading Dimensions:
  With the TC002 App, users can manually select from three different dimensions to check temperature: Point, Line (with highest and lowest readings), and Surface (with highest and lowest readings).

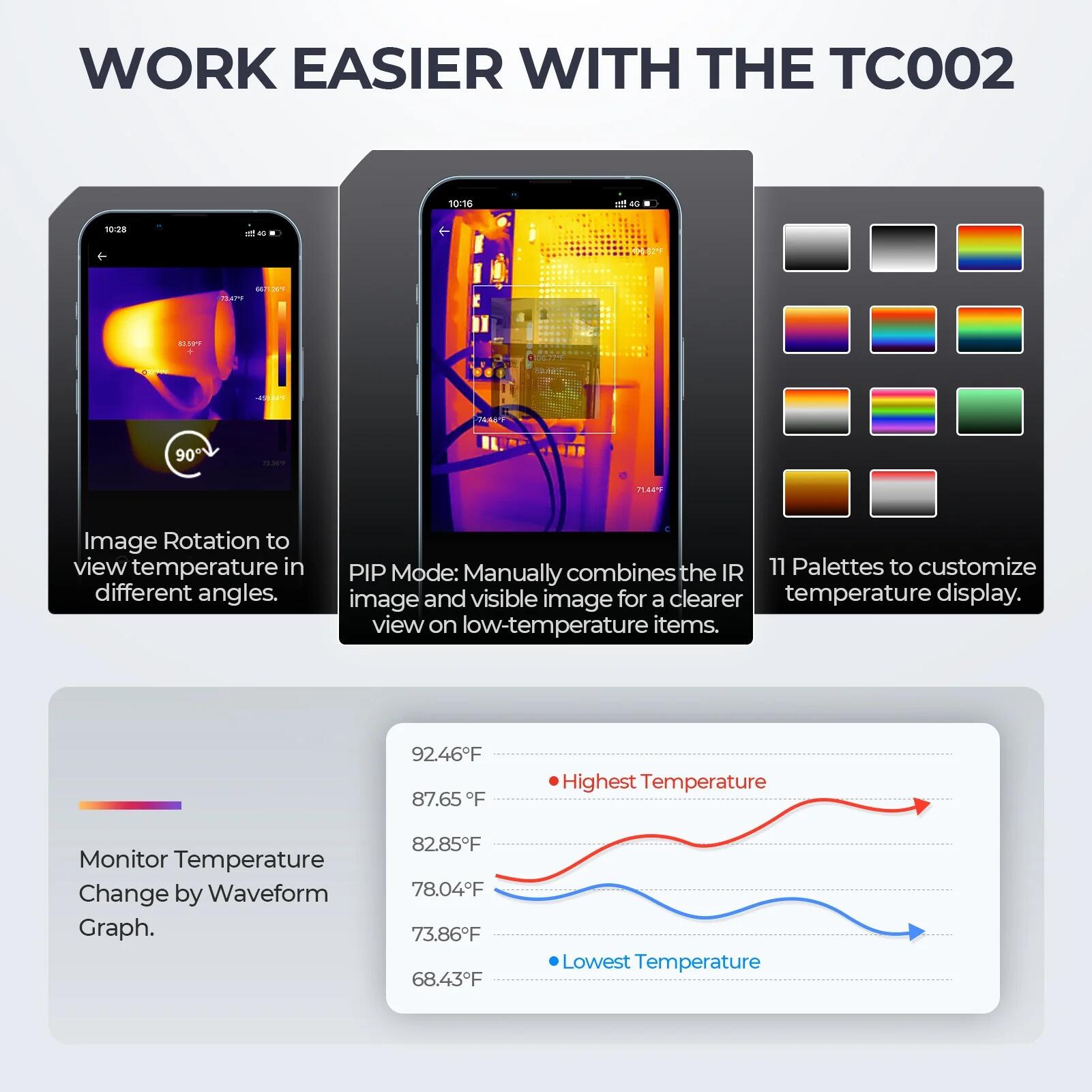

• Multiple Color Palettes:
  The TC002 offers 11 unique color palettes, allowing users to customize their temperature display to their preferred gradient colors.
• Image Enhancement:
  Users can adjust the sharpness and contrast of the thermal image to achieve a customized view.

 Adjustable Temperature Range

• Featuring a DIY temperature range feature, the TC002 allows users to set maximum and minimum temperature limits. If the object temperature exceeds these limits, the camera will display corresponding color images, making it easier for users to understand and visualize the temperature of the target area.

 Intuitive & Graphical Wave Form

• The TC002 thermal camera can take continuous temperature readings and store the data in its accompanying app. This data can then be used to calculate the high, low, and average temperatures of objects within its field of view over a certain period of time; allowing users to visualize the data in the form of a waveform graph.

 Techincal Specifications

• Spectral Range: 8~14μm
• Resolution: 256×192 Pixels
• Pixel Size: 12μm
• NETD: ＜40mK @25°C
• Frame Rate: 25Hz
• Object Temperature Range: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
• Accuracy: Maximum Temperature Variance of 2°C, right down to the 0.1°C
• Weight: 30g
• Dimension: 71*42*14mm (2.80*1.65*0.55 inch)
• Cable Length: 50cm (19.69 inch)
• Operating Systems: Compatible with iPhone & iPad

Warranty

1 Year Warranty

Whats Included?

• TC002 Thermal Imaging Camera
• Carrying Bag
• Multifunctional Adapter Cable
• Package Box
• Quick User Guide
• Cleaning Cloth
